FORD / INTERNATIONAL / NAVISTAR

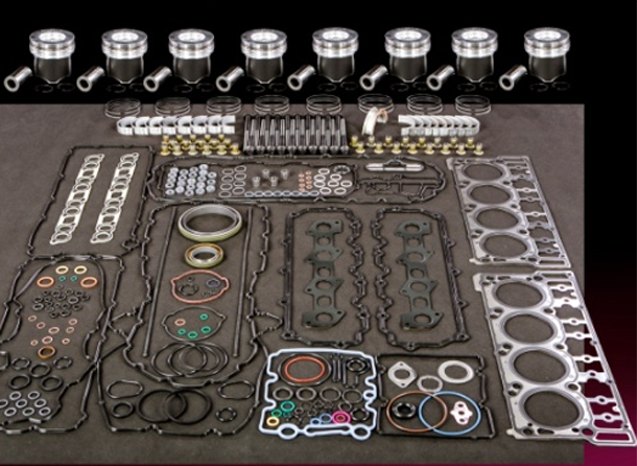

OUT-OF-FRAME KIT INCLUDES THE FOLLOWING ITEMS:
Piston Kits (Piston, Ring Set, Piston Pin, Pin Retainer)
Main Bearings
Rod Bearing
Gasket Set - Upper
Gasket Set - Lower
Head Bolts - Long
Valve Stem Seals
Front & Rear Seals
REMARK WHEN ORDERING PLEASE SPECIFY:
• Size of Piston Kit
STD, .020, .030, & .040 Available
• Size of Mains & Con. Rod Bearings
STD, .25mm, .50mm & .75mm Available
PLEASE HAVE THE FOLLOWING INFORMATION READY AT THE TIME OF ORDERING:
• Truck (Make a model)
• Year
• 18mm Cylinder Head Dowel
• 20mm Cylinder Head Dowel
| MODEL | MAKE | YEAR | ENGINE | BORE | CYL |
|---|---|---|---|---|---|
| E-SERIESS | International Power-Stroke | 2004-2010 | 363 CID/6.0L/VT365 32V TURBO | 3.74′(95.00MM) | V8 |
| E-SERIESS | International Power-Stroke | 2003-2008 | 363 CID/6.0L/VT365 32V TURBO | ||
| EXCURSION | International Power-Stroke | 2003-2008 | 363 CID/6.0L/VT365 32V TURBO |
| Part Number | Engine | YEAR | Vin/Engine Code | Interchange |
|---|---|---|---|---|
| ESOF6.0L-2003 | 6.0L | 2003 | 1st Generation, to S/N 1610, VIN P, 18:1 CR, Standard Compression, 18mm Dowel | |
| ESOF6.0L-18MM | 6.0L | 2004-2006 | 2nd Generation, S/N 1611 and up, 2nd Design, Standard Compression, 18mm Dowel | |
| ESOF6.0L-20MM | 6.0L | 2005-2010 | 2nd Generation, S/N 1611 and up, 2nd design, Standard Compression, 18mm Dowel |
